eMMC and UFS second sourcing: price versus requalification cost

An eMMC or UFS second source is another approved configuration, not simply another seller offering the same capacity. First establish whether the candidate can be qualified with the project's hardware and software, then compare total cost. A lower component price may not cover board changes, customer approval and engineering work.

eMMC and UFS are different interface systems, not drop-in replacements for each other. Even within one family, check the exact package, ball map, power rails, host support and configuration. Both contain NAND and management logic; a standardized interface does not make initialization, latency, health reporting or recovery behaviour identical.

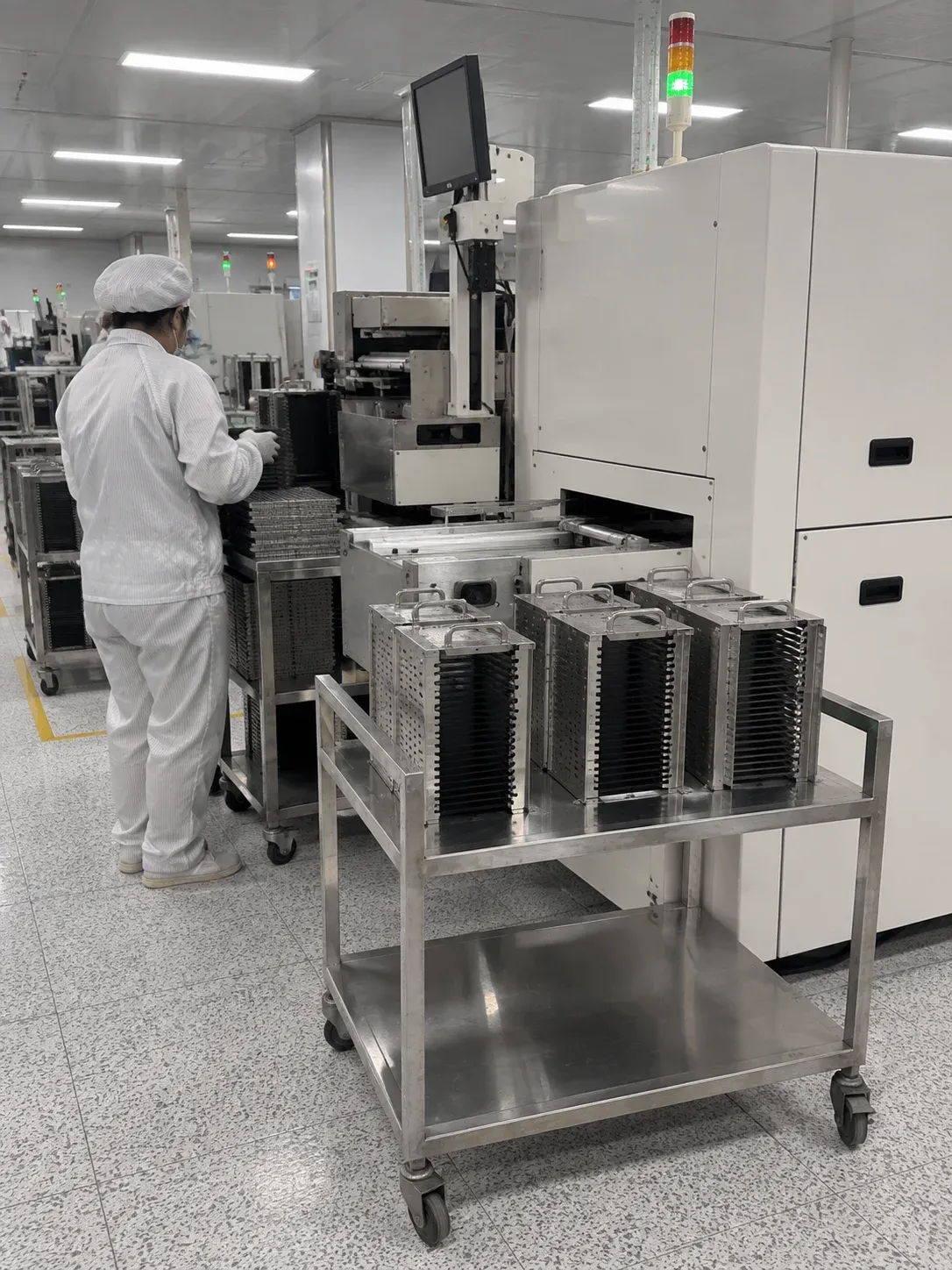

Image: AI-generated workshop illustration, not an actual factory photograph, inventory claim or second-source test record.

Kalstor supplies storage hardware. Software adaptation, provisioning, key management and system validation described below belong to the customer or its appointed engineering provider; they are not software services offered by Kalstor.

Describe the incumbent before requesting an alternative

"64GB BGA" is not enough. Provide the manufacturer ordering code, datasheet revision, package dimensions and ball map, SoC, system version and any boot, security or health-management features in use. A manufacturer part catalog helps locate a device, but a family overview cannot replace documentation matching the exact candidate.

Once differences between the incumbent and candidate are identified, the team can determine the required validation and its additional cost.

Separate one-time qualification cost from ongoing cost

One-time costs may include samples, prototype boards, customer-managed software adaptation, validation hours and required customer approvals. Ongoing costs may include component purchasing, incoming checks, version maintenance and dual-source administration. Include only costs that the project expects to incur; do not automatically charge every category.

A preliminary comparison is: verified savings per unit multiplied by the planned adoption quantity, minus incremental one-time and ongoing costs over the same planning period. Use a supported demand plan, consistent currency and comparable delivery terms, not an aspirational sales quantity. A positive result does not waive reliability or supply-scope review.

Second sourcing can also be justified by lead-time or lifecycle risk, even for a smaller project. Confirm available boards, engineering support and the customer's change-approval window before promising a switch date. Price, documentation availability and technical suitability are separate decisions.

Define dual-source control before sample testing

Agree how the two sources will be numbered, selected and traced before testing starts. Retain board and system versions, storage identity and configuration, test conditions and results. Each source enters the approved purchasing list only after its own approval. A shared commercial name cannot preserve an old conclusion after a controller, NAND or firmware change.

The candidate need not have identical internal design, but must meet the project's accepted behaviour and performance limits. Missing temperature or feature documentation remains an open item; do not inherit the incumbent's rating by assumption.

The correct objective is not “find an equivalent chip.” It is “qualify a controlled substitution that preserves the product contract.”

Define equivalence at the system boundary

JEDEC develops the e.MMC and UFS standards [1]. Compliance enables interoperability, but it does not fix every internal implementation choice or application result. Write a candidate specification that separates mandatory equivalence from permitted difference.

Do not use the incumbent's measured behavior as an undocumented specification. Decide which characteristics the product actually requires and write limits with the engineering, manufacturing and service owners.

Freeze candidate identity and documentation

For every sample, retain:

• supplier and complete ordering code;
• capacity, package drawing and ball map;
• date/lot code and sample provenance;
• device and specification revision;
• firmware or product revision exposed to the host;
• approved operating-temperature grade;
• supplier datasheet, errata and qualification statement revision;
• PCN notice period and requalification responsibility.

For eMMC, capture CID, CSD and EXT_CSD before changing configuration. Linux mmc-utils can print and parse EXT_CSD and CID, inspect write protection, configure boot behavior, enable BKOPS, work with enhanced areas and access RPMB functions [2]. For UFS, capture the device, geometry, configuration, unit, interconnect, power and health descriptors available on the platform. Linux documents UFS descriptor access and the userspace path for UFS tooling [3].

The output becomes a machine-readable allowlist. An unexpected manufacturer ID, revision or capacity should stop production rather than fall through to a generic recipe.

Qualify boot and provisioning first

Embedded-storage substitutions frequently fail before workload testing because the manufacturing recipe assumes incumbent behavior.

Test the exact released flow:

1. blank-device discovery and identity allowlist;
2. irreversible-configuration authorization gate;
3. boot-area or logical-unit configuration;
4. enhanced-area, reliable-write, cache or WriteBooster settings where used;
5. bootloader, OS, recovery and data image programming;
6. RPMB key programming or secure provisioning in the authorized environment;
7. power cycle and configuration readback;
8. unit-level record tying device identity to board serial and image hashes.

Never assume that a script safe for one eMMC density is safe for another. Some EXT_CSD operations and RPMB key actions are one-time or effectively irreversible. The eMMC production-provisioning guide provides a separate control framework for those steps.

For UFS, verify that the bootloader and kernel negotiate the intended link and power modes, enumerate the expected logical units and handle candidate descriptors without vendor-specific assumptions.

Test the released software stack

A socket tester can establish basic electrical and data access, but second-source approval belongs on the production board. Use the released or release-candidate:

• SoC and board revision;
• boot ROM assumptions and bootloader;
• storage controller and PHY settings;
• kernel and driver;
• filesystem and encryption layer;
• power-management policy;
• provisioning and field-update tools;
• application workload.

Run repeated cold boot, warm reboot, watchdog reset, suspend/resume and low-power transitions. Record enumeration time, boot time, negotiated mode, error/retry counters and failures by unit. A single successful boot can miss slow initialization tails and intermittent power-sequencing sensitivity.

Compare performance distributions, not headline speed

KIOXIA's UFS product brief illustrates the managed architecture: NAND, controller, error correction, wear leveling, logical-to-physical translation and bad-block management reside inside the package [4]. Suppliers can implement these functions differently while meeting the same interface family.

Build an application-relevant matrix:

Report medians and percentiles appropriate to the application, not only the best transfer rate. For logging, camera and control products, long write stalls may be more consequential than average bandwidth. The eMMC BKOPS and latency guide explains the background-operation risk in more detail.

Verify data integrity and power-loss recovery

Use controlled records containing logical address, sequence number and checksum, with the expected manifest held on an independent system. Cover sequential and random workloads, different block sizes, cache/flush behavior, partial fill, near-full state and application filesystem recovery.

During abrupt-power-loss testing, distinguish:

• writes contractually durable before interruption;
• in-flight writes whose final value may be indeterminate;
• untouched addresses that must never change;
• boot/configuration metadata and RPMB state;
• time to enumerate and return to stable I/O.

Record the voltage at the storage device, not only the bench-supply switch event. Preserve the first post-recovery state before filesystem repair or repeated reboot. A device that eventually boots may still fail the product's data-correctness or recovery-time requirement.

Treat security as a compatibility requirement

If the product uses RPMB, verified boot, rollback protection or hardware-backed secure storage, run the real security lifecycle:

• authorized key provisioning;
• authenticated read/write and counter behavior;
• reboot and update flows;
• rejected replay or invalid authentication where testable;
• factory reset and service procedure;
• failure handling without exposing keys in logs.

Do not reuse production secrets in qualification. Use an isolated test key hierarchy and prove that the manufacturing station selects the correct policy for each approved device.

Write an evidence-based approval table

Every applicable row needs evidence for production approval; mark unused features as not applicable with a reason rather than inventing a pass. A failure should identify the layer and retain raw logs, not be summarized as “vendor B incompatible.”

Control the approved substitution

Approve exact part numbers and a written revision envelope. Link them to the AVL, BOM, provisioning recipe, software release and test report. Require supplier notification for controller, NAND, firmware, package, capacity or relevant manufacturing changes, then route each notice through the flash-storage PCN/EOL process.

Suggested RFQ language:

Proposed eMMC or UFS shall be supplied under an identified orderable part number, revision and material-change boundary. Approval is conditional on OEM verification of identity, provisioning, boot, RPMB/security, workload performance, power-loss recovery and production traceability. No substitution or firmware/material change is authorized without written notification and requalification review.

For an initial embedded-storage hardware review, send the incumbent part number, SoC, package, interface, capacity, temperature target, expected quantity and change restrictions. Add the required timing and available validation resources to the hardware RFQ. A quotation is not substitution approval; candidate availability and documentation must be confirmed separately.

Bottom line

An eMMC or UFS second source is not approved because it fits the footprint and boots once. It is approved when a defined candidate passes the complete product path—from blank-device provisioning through field workload, power interruption, security and change control—and the evidence is tied to the exact parts the factory may buy.
